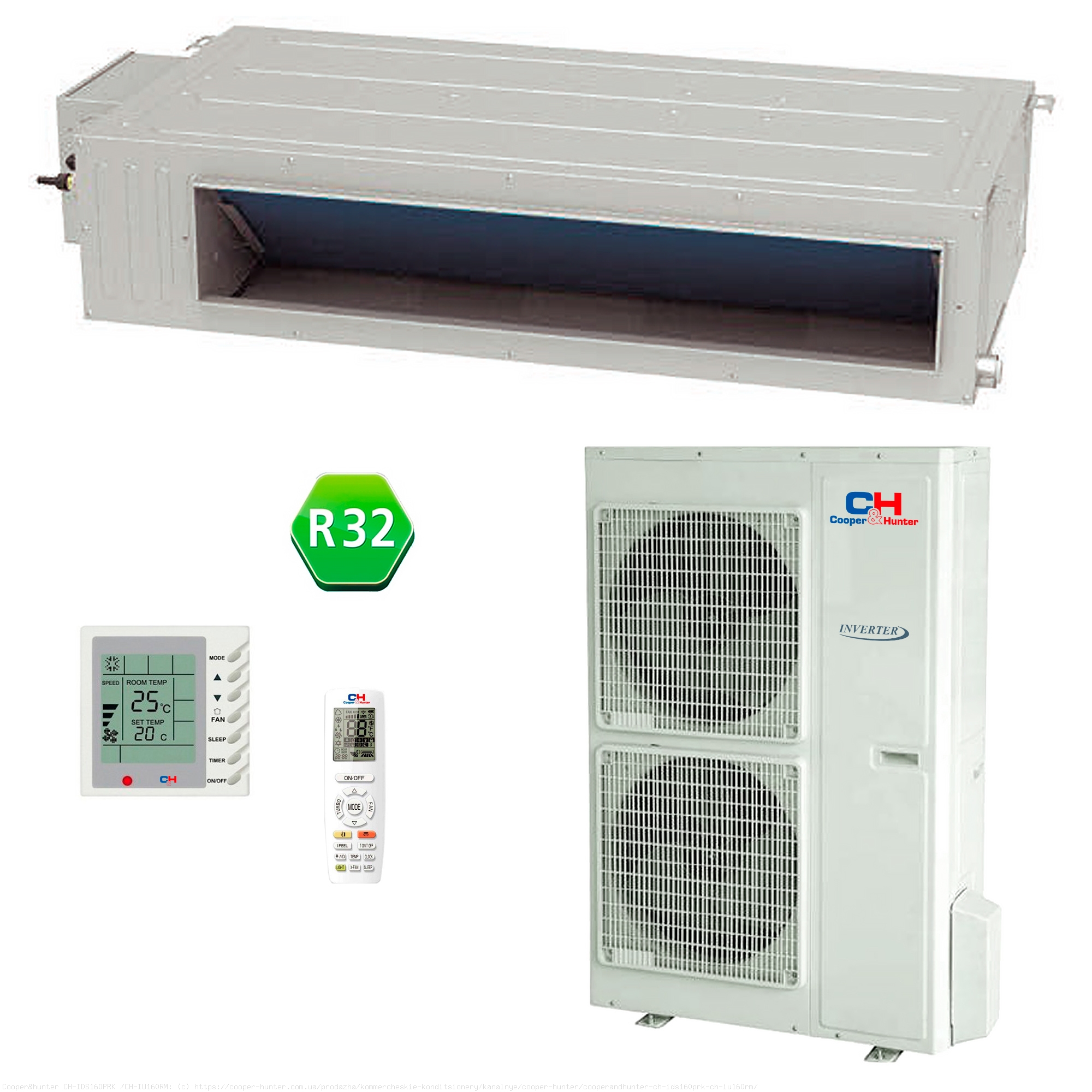

Channel-type air conditioner CH-IDS160PRK /CH-IU160RM for rooms up to 160 m²:
| Main functions | |
| Product type | ducted air conditioner |
| Series | Nordic Commercial Inverter R32 |
| Cooling | Yes |
| Heating | Yes |
| Filtration | Yes |
| Air dehumidification | Yes |
| Ventilation | Yes |
| Main characteristics | |
| Voltage, V/Hz/F | 380-415V/50Hz/1F |
| Room size, m² | 160 |
| Air consumption, m³/h | 2400 |
| Power consumption, kW | Cold: 5.45 / Warm: 5.00 |
| Cooling capacity, kW | 16.00 |
| Energy Efficiency in Cooling Mode (EER) | 2.94 |
| Seasonal performance factor SEER (cooling) | 6.10 (A++) |
| Heating capacity, kW | 17.00 |
| Energy efficiency in heating mode (COP) | 3.40 |
| Seasonal coefficient of performance SCOP (heating) | 4.00 (A+) |
| Dimensions of the indoor unit, mm | 1440x300x754 |
| Outdoor unit dimensions, mm | 900x412x1345 |
| Noise level of the indoor unit, dB - min / max | 44/41/39/38 |
| Noise level of the outdoor unit, dB | 57 |
| Freon type (refrigerant) | R-32 |
| Additional Information | |
| Outdoor temperature range for cooling | from -20°С to +48°С |
| Outdoor temperature range for heating | from -20°С to +24°С |
| inverter control | Yes |
| Automatic restart | Yes |
| On-off timer | Yes |
| Self-diagnosis | Yes |
| Remote control | Yes |
| Production | USA |
| Assembly | Hong Kong |
| Official guarantee | 2 years |
| Maximum height difference, m | thirty |
| Maximum line length, m | 75 |
| The distance between the bolts of the outdoor unit | 572 |
| ⌀ Gas line diameter (mm/in) | 15.88 / 5/8" |
| ⌀ Liquid line diameter (mm/in) | 9.53 / 3/8" |
