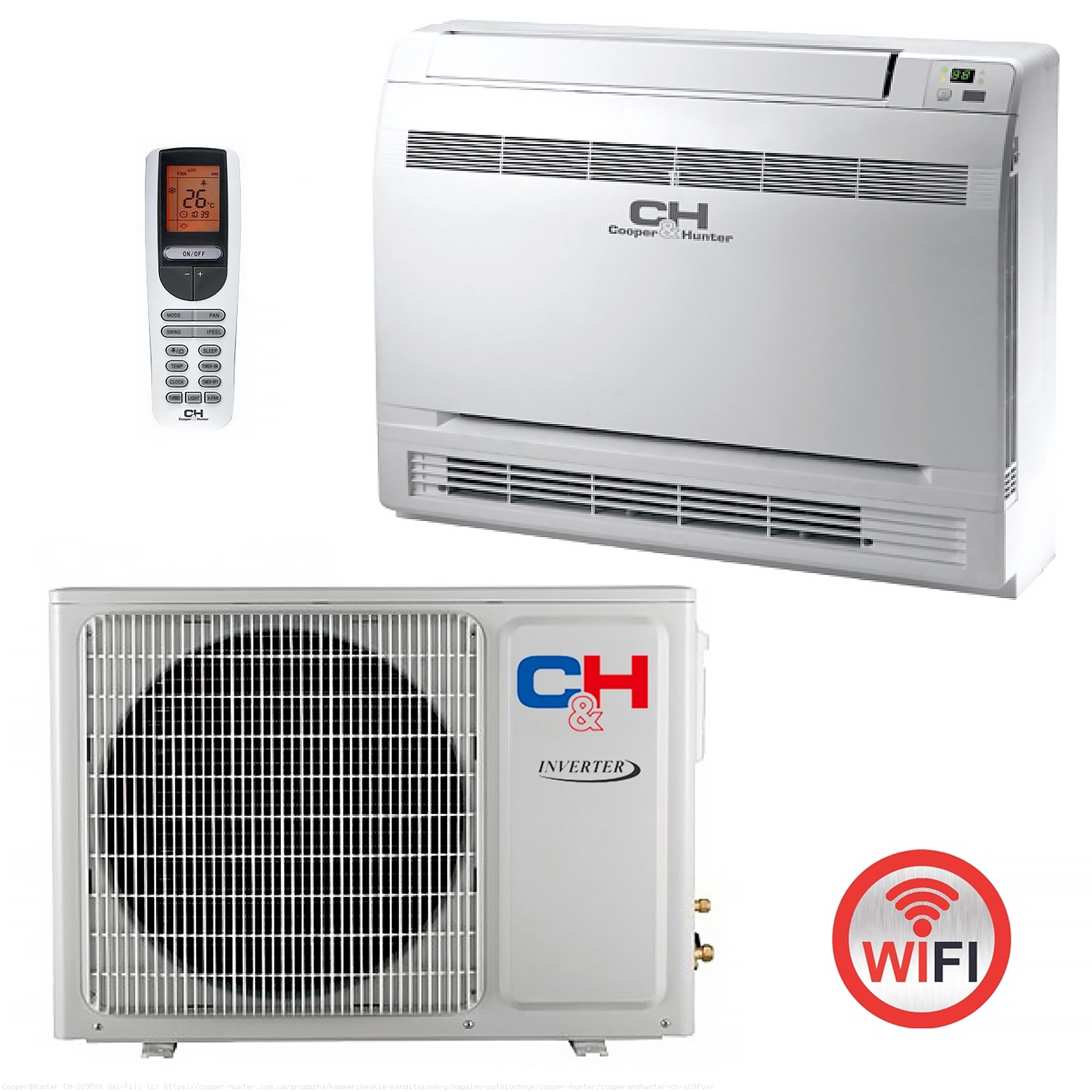

Floor and ceiling air conditioner Cooperandhunter СH-S09FVX is:
- wide-angle blinds (coverage of the entire volume of the room)
- new generation automatic anti-icing system (Intelligent Preheating) (reduction of energy loss due to unnecessary defrost cycles)
- Virtually silent operation of the indoor and outdoor units
- Slim format
- function "I Feel" (with temperature sensor in the remote control)
- indication of the temperature of the outside air and the air inside the room (current and set)
- heat exchanger with anti-corrosion coating GREEN-FIN
- removable, washable pre-filter and front panel
- the possibility of vertical supply of cold air from the top of the unit and warm air along the floor from the bottom of the unit
- SLEEP comfortable sleep mode (silent operation in automatic mode for 8 hours)
- timer for turning on and off in the range of 24 hours in steps of 1 minute
- possibility of heating operation at -25°C
- smooth and stable operation at ultra-low frequencies (Stable Frequency Control technology)
- the ability to display the current time of day on the remote control
- minimum standby power consumption
- Precise temperature control (accuracy 0.5°C)
- compressor soft start system with starting current below 50 A
- energy saving mode
- possibility of completing with two filters (activated carbon filter “Anti-odor” and filter “Antibacterial suppressor”; filter “Nano-titanium anti-chemical catalyst”; Catechin filter; Electret dust filter of your choice (option))
- self-cleaning ability of the indoor unit (eliminates the formation of mold, fungi and bacteria inside the unit)
- automatic air distribution function (SWING mode)
- ability to backlight the display on the indoor unit of the air conditioner
- anti-corrosion coating of the outdoor unit body
- the ability to use Turbo mode
- humidity reduction function without temperature reduction
- bright and clear indication of modes and operating parameters (LED display)
- fan start delay function (exclusion of cold air blowing)
- control lock
The distance between the mounting bolts block - 540 mm
Dehumidification - 1.00 l/h
| Bicycles |
| Main functions |
| Mounting |
9 |
| Product type |
Console (floor) air conditioner |
| Series |
CONSOL INVERTER |
| Video review on Youtube |
YCcP3D19Cue |
| Cooling |
Yes |
| Heating |
Yes |
| Filtration |
Yes |
| Air dehumidification |
Yes |
| Ventilation |
Yes |
| Main characteristics |
| Color |
white |
| Voltage, V/Hz/F |
220-240/50/1 |
| Room size, m² |
25 |
| Air consumption, m³/h |
500 |
| Power consumption, kW |
0.66 (0.20-1.55) - cold; 0.81 (0.20-1.35) - warm |
| Cooling capacity, kW |
2.60 (0.45-3.20) |
| Energy Efficiency in Cooling Mode (EER) |
3.39 |
| Heating capacity, kW |
3.30 (0.45-3.75) |
| Energy efficiency in heating mode (COP) |
4.10 |
| Dimensions of the indoor unit, mm |
700x600x215 |
| Outdoor unit dimensions, mm |
848x540x320 |
| Noise level of the indoor unit, dB - min / max |
22/28/37 |
| Noise level of the outdoor unit, dB |
50 |
| Freon type (refrigerant) |
R410 |
| Additional Information |
| Automatic cleaning |
Yes |
| Outdoor temperature range for cooling |
up to +48°C |
| Outdoor temperature range for heating |
from -25°C |
| inverter control |
Yes |
| Adaptation to negative temperatures |
Yes |
| Protection against misuse |
Yes |
| Automatic restart |
Yes |
| On-off timer |
Yes |
| Self-diagnosis |
Yes |
| Auto defrost |
Yes |
| Remote control |
Yes |
| Production |
hong kong |
| Official guarantee |
2 years |
| Maximum height difference, m |
10 |
| Maximum line length, m |
15 |
| ⌀ Gas line diameter (mm/in) |
9.53/3/8" |
| ⌀ Liquid line diameter (mm/in) |
6.38/1/4" |
