  • Wi-Fi module for the ability to control the air conditioner via Smartphone / Tablet (OS: Android, iOS);
  • CH 7-SKY Technology is a complex filtration system based on seven broad-spectrum filters.
  • New generation total air purification technology “CH SMART-ION Filter” (Cold Plasma);
  • The highest class of energy efficiency. Premium energy-saving equipment according to the A+++ Class Energy Efficiency GENERATON V type (increased quality control of assembly and materials);
  • The heat pump Cooper&Hunter CH-S12FTXLA-NG works for heating up to -25°C.
  • Temperature range of effective operation from - 25°С to + 48°С;
  • Full compliance with the directive of the European Union ErP (Energy related Products) No. 626/2011/EU valid since 1-01-2013 for domestic heat pumps and air conditioners SEER A ++ SCOP A +++;
  • The direction of the air flow vertically and horizontally is set from the remote control;
  • A special algorithm of operation that ensures stable and efficient operation at low temperatures outside. Intelligent defrosting, compressor and tray heating, outdoor unit fan speed control;
  • Built-in temperature sensor in the remote control;
  • Intelligent defrosting system. The start and end of the defrosting process occurs according to temperature sensors;
  • Intelligent auto-restart system. Before starting, the power parameters are checked;
  • I-Action technology - smooth and stable operation of the compressor at ultra-low frequencies (1Hz);
  • Uninterrupted operation in the range of 96V-260V. Innovative, small-sized transformer;
  • Illumination of the display of the indoor unit and remote control;
  • Warm start function. Warning of blowing cold air when turning on for heating.
Bicycles
Main functions
Product type Air conditioner
Series Arctic
User manual cooperandhunter-ch-s12ftxla-ng-r32-wi-fi.pdf
Video review on Youtube PC8gWww7MZ4
Cooling Yes
Heating Yes
Filtration Yes
Ionization Yes
Air dehumidification Yes
Ventilation Yes
Main characteristics
Color White
Voltage, V/Hz/F 220-240V/50Hz/1F
Room size, m² 35
Air consumption, m³/h 660/540/460/330
Power consumption, kW 0.80 (0.22-1.45)
Cooling capacity, kW 3.50 (0.60-4.05)
Energy Efficiency in Cooling Mode (EER) 4.38
Seasonal performance factor SEER (cooling) 6.1 (A++)
Heating capacity, kW 3.67 (0.60-5.25)
Energy efficiency in heating mode (COP) 4.65
Seasonal coefficient of performance SCOP (heating) 5.1 (A+++)
Dimensions of the indoor unit, mm 845x289x209
Outdoor unit dimensions, mm 776x540x320
Noise level of the indoor unit, dB - min / max 22/27/36/42
Freon type (refrigerant) R-32
Additional Information
Automatic cleaning Yes
Outdoor temperature range for cooling from -15°С to +48°С
Outdoor temperature range for heating from -25°С to +24°С
inverter control Yes
Adaptation to negative temperatures Yes
Automatic restart Yes
On-off timer Yes
Self-diagnosis Yes
Auto defrost Yes
Remote control Yes
Compressor brand Daikin
Production USA
Assembly Hong Kong
Official guarantee 2 years
Name synonyms CH S 12 FTXLA NG
Maximum height difference, m 10
Maximum line length, m 20
The distance between the bolts of the outdoor unit 510
⌀ Gas line diameter (mm/in) 9.53/3/8"
⌀ Liquid line diameter (mm/in) 6.38/1/4"

Write a review

Note: HTML is not translated!
    Bad           Good

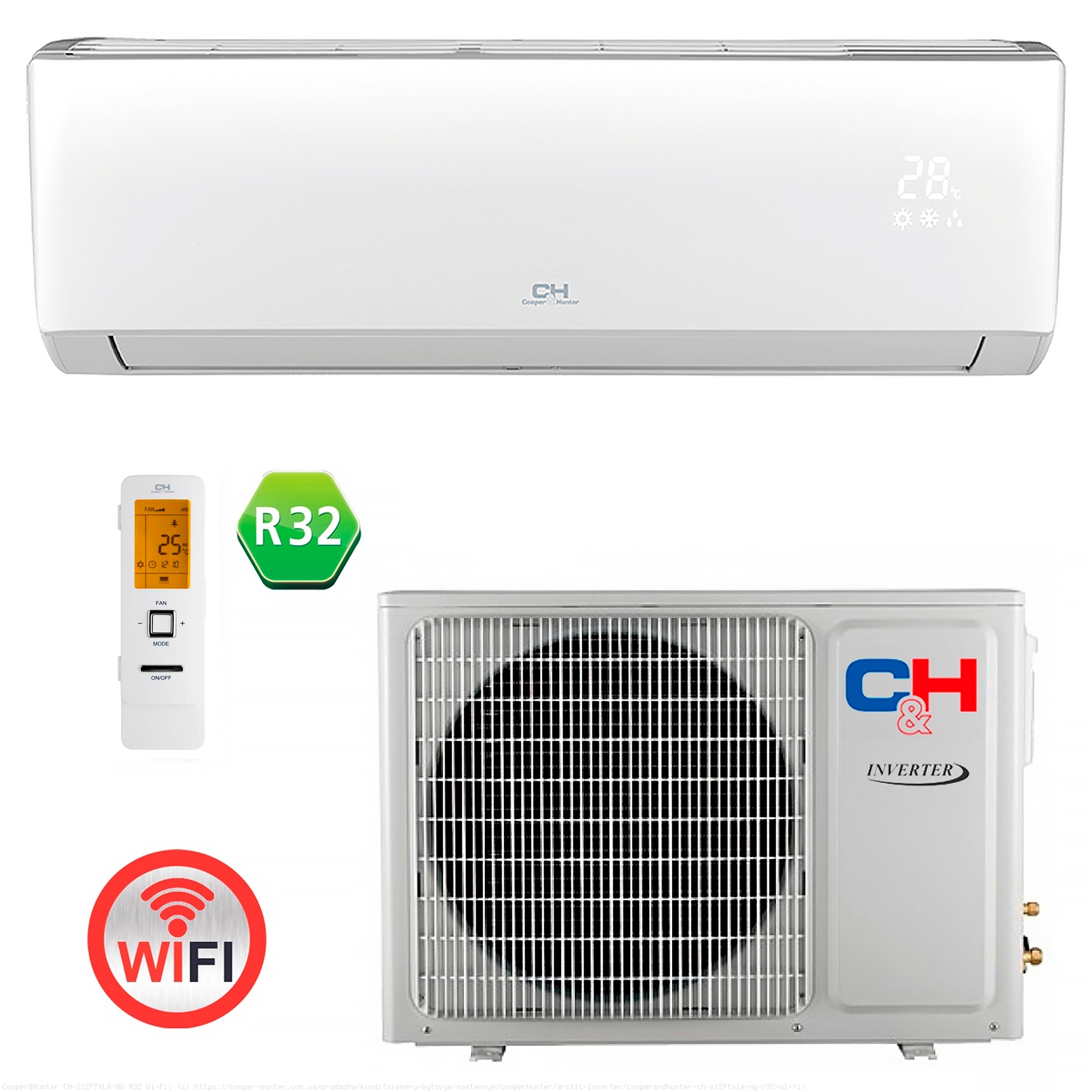

Cooper&Hunter CH-S12FTXLA-NG R32 Wi-Fi
